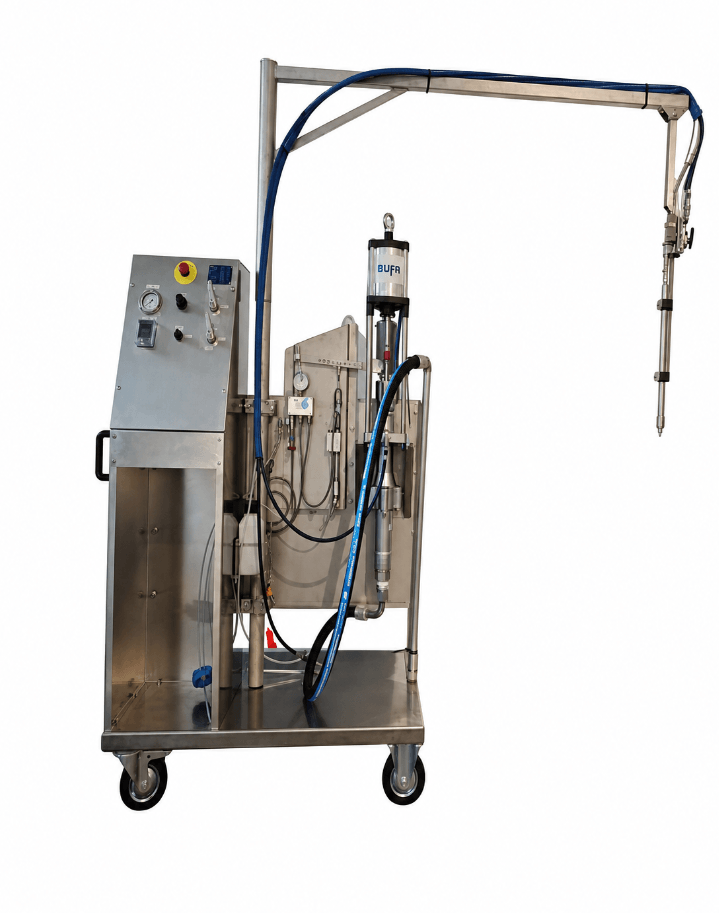

BÜFA®-Tec Sigma EVO Line RTM
RTM unit Sigma EVO is designed for industrial use, for small to large-sized components.
Facts:
- Innovative pump technology for resin and peroxide
- Mechanically driven peroxide pump
- Internal mixing at the injection head
- Recirculation of components
- Less solvent consumption
Accessories:
Pressure monitoring
Peroxide monitoring
Technical data
| Output rate at 30 cycles/min, water [l/min] | 6.6 |
| Volume of flow per double stroke [ml] | 220 |
| Pressure ratio | 23:1 |
| Air pressure, entrance [bar] | 6.6 |
| Air consumption, approx [l/min] | 700 |
| Length of hose [m] | 7.5 |
| Weight [kg] | 100 |
| Dimensions approx. (L/W/H) [mm] | 1100 x 800 x 2600 |
| Boom from centre ca.[mm] | 1800 |
Product nr: 028-1991
